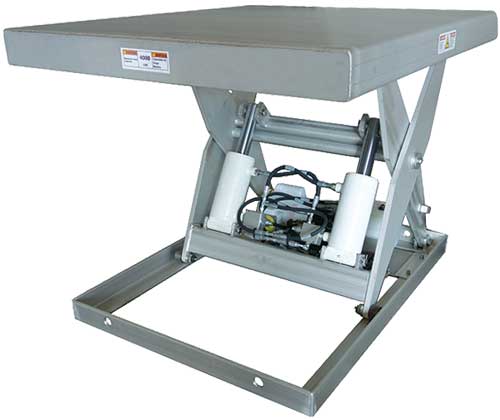

Ideal for use in wash down areas, the SXT hydraulic lift table has a passivated sanitary finish and all dead end spaces have been eliminated.
In addition to the many ergonomic benefits derived by using lift tables, the USDA Approved SXT also meets the complex requirements demanded by the food processing, chemical and pharamaceutical industries.
The SXT is constructed out of T304 stainless steel, has totally enclosed dual hydraulic lift cylinders and a self-contained power unit.
The SXT is constructed out of T304 stainless steel, has totally enclosed dual hydraulic lift cylinders and a self-contained power unit.
Dual low pressure hydraulic cylinders are SST powder coated. Optionally, full stainless steel cylinders are available.
T304 stainless steel construction meets the complex requirements in the food, chemical and pharamaceutical industries.
Internally mounted motor has a white epoxy finish for superior protection. Remote power unit available as an option.
Platform size is larger than the base frame creating a gap between the lowered top and floor for extra foot protection.
| Model | Vertical Travel | Capacity | Height | Platform Size | Up Speed | Base Frame | Motor | Voltage | Quote Form | |
|---|---|---|---|---|---|---|---|---|---|---|
| Lower | Upper | |||||||||
| SXT-040-36 | 27" | 4,000 lbs | 9" | 36" | 42" x 48" | 30 sec | 35.5" x 45" | 1 HP | 115 | Quote |
| Model | SXT-040-36 |
|---|---|
| Travel | 27" |
| Capacity | 4,000 lbs |
| Lowered Height | 9" |
| Raised Height | 36" |
| Platform Size | 42" x 48" |
| Up Speed | 30 sec |
| Base Frame | 35.5" x 45" |
| Motor | 1 HP |
| Voltage | 115 |
| Quote Form | Quote |
