The Maxx-Mini-Lift is a light weight and highly maneuverable platform lift that is ideal for order picking and general material handling. Its quick lift manual foot pump with fold up pedal allows for easy height adjustment.
With a capacity of either 440 or 660 lbs, The Maxx-Mini-Lift can handle most light material handling jobs. It features polyurethane wheels with brakes on the swivel casters in the rear and rigid front casters. The reliable hydraulic lift cylinder is chrome plated and includes overload protection.
Lift is accomplished by pumping hydraulic fluid into the cylinder. As the cylinder extends, it elevates a mounted chain pulley that is attached to the platform.
The platform rolls up the dual steel uprights in a secure fashion with three points of contact per upright. An adjustable release valve allows for controlled descent of the platform.
The platform rolls up the dual steel uprights in a secure fashion with three points of contact per upright. An adjustable release valve allows for controlled descent of the platform.
Manual foot pump easily lifts the platform and folds away during storage. Rubber pedal ensures good traction.
Conveniently located adjustable release valve allows for the operator to control the speed of the platform's descent.

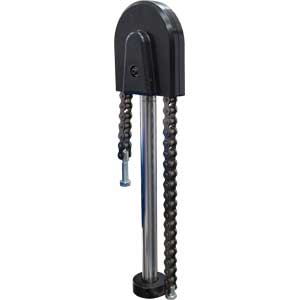

Platform is raised by extending the cylinder which pushes up the mounted chain pulley. The chain then elevates the platform.
Platform actuates smoothly on two vertical uprights secured by three points of contact per upright for easy positioning.
| Model | Vertical Travel | Capacity | Height | Platform Size | Pumps To Lift | Overall Height | Ship Weight | Quote Form | |
|---|---|---|---|---|---|---|---|---|---|
| Min | Max | ||||||||
| MMS-20 | 25" | 440 lbs | 8" | 33" | 24" x 20" | 15 | 38" | 99 lbs | Quote |
| MMS-30 | 44.1" | 660 lbs | 8.9" | 53" | 25" x 22.8" | 49 | 57.5" | 183 lbs | Quote |
| Model | MMS-20 | MMS-30 |
|---|---|---|
| Travel | 25" | 44.1" |
| Capacity | 440 lbs | 660 lbs |
| Lowered Height | 8" | 8.9" |
| Raised Height | 33" | 53" |
| Platform | 24" x 20" | 25" x 22.8" |
| Pumps to Lift | 15 | 49 |
| Overall Height | 38" | 57.5" |
| Ship Weight | 99 lbs | 183 lbs |
| Quote Form | Quote | Quote |
